Motor Testing BLDC (BRUSHLESS) MOTORS

Go/No Go tester

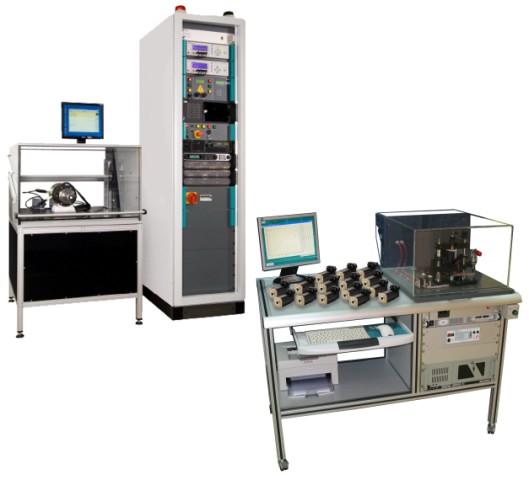

MotorLine® - MLI-B

Motor Testing BLDC (BRUSHLESS) MOTORS

Features and Benefits:



·          Performs QA testing on 100% of production without compromising line throughput (up to 10 motors per minute), reducing costs of defective products.

·          Determines acceptability to user predefined PASS/FAIL limits on production lines.

·          Provides motor performance data, from stall up to no-load, within seconds, including:

torque, speed, current, voltage,

      input power, output power,

      time, motor efficiency, driver efficiency,

      direction of rotation.

·          Provides dynamic performance tests data, including:

        speed and torque spectrum,

      speed and torque oscillations,

      friction torque, friction spectrum,

friction output power, cogging torque level.

·          Supports non-contact frictionless sensors.

·          Supports motor’s internal speed sensors.

·          Support sensorless BLDC motors.

·          Speed range up to 250,000 rpm.

·          Motor power switching is done by the motor electronics; the data sampling is started while the motor starts moving.

·          Motors can be tested inside their applications.

·          Motor performance data can be recorded in the system database for comparison and statistical analysis.

·          Test results are provided graphically and tabulated.

·          Test reports in PDF and Excel format.

·          Capability for integration with third party devices, such as hipot & insulation resistance testers.

·          System is customized to suit specific requirements.



Conforms to CE, in accordance with IEEE 112TM and

60034-2-1 © IEC:2007




General Specifications
