Motor Test for Electric Scooters

Motor Test for Electric Scooters

·          The performance data of electric motors, in the majority of all cases, is performed by a brake test. Power input is calculated from current and voltage. Torque and power output are measured with a brake. It is important to reach, for each point, a persistent temperature. In case of large outer rotor BLDC motors, which are usually used for electric scooters, this traditional procedure may take many hours to complete, and is very complicated.



·          For several years, an innovative motor tester of MEA Testing Systems Ltd. is on the market. This testing system avoids any temperature confusion by testing a motor at constant temperature over the entire speed range. The test procedure is very fast, and gives the full load performances, including PWM current, voltage, torque, and driver efficiency, from stall up to no load.



·          During the test procedure, the motor is freely accelerated from stall to no load speed. The load of the motor is only the predetermined inertia of the rotor. From the moment of inertia and the acceleration, the torque of the motor is calculated and, also, the power output over the whole speed is given. Since the entire measuring time, depending on the motor size, is usually less than one second, the motor has no time to warm up. It remains at room temperature.

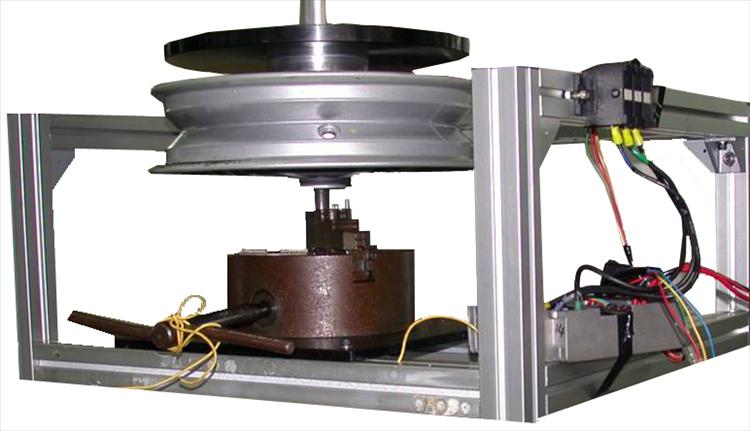

Testing Scooter MotorsTesting Scooter Motors
