Go/No Go tester

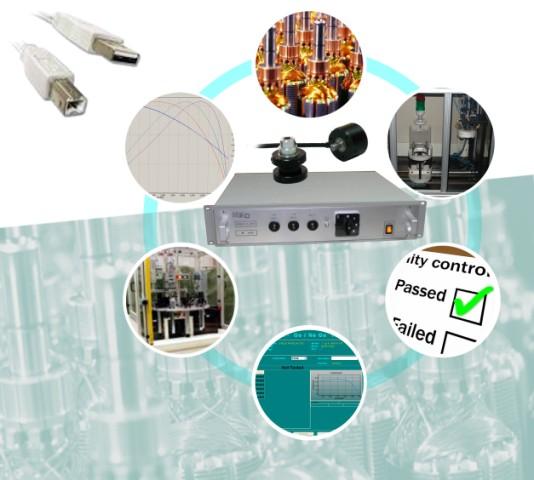

MotorLine Kit® - MLIK-D


Features and Benefits:


·          Low-cost portable unit with all the major motor performance tests of the standard MotorLine® system.

·          Connects directly to USB 2.0 port.

·          Performs QA testing on 100% of production without compromising line throughput (up to 10 motors per minute), reducing costs of defective products.

·          Determines acceptability to user predefined PASS/FAIL limits on production lines.

·          Provides motor performance data, from stall up to no-load, within seconds, including:

      torque, speed, current, voltage,

      input power, output power, time,

      efficiency, direction of rotation.

·          Provides dynamic performance tests data, including:

        speed and torque spectrum,

      speed and torque oscillations,

      friction torque, friction spectrum,

cogging torque level, back EMF.

·          Motor performance data can be recorded in the system database for comparison and statistical analysis.

·          Motor power switching is done automatically by the system.

·          Motors can be tested inside their applications.

·          Test results are provided graphically and tabulated.

·          Test reports in PDF and Excel format.

·          Capability for integration with third party devices, such as hipot & insulation resistance testers.

·          Supports non-contact frictionless sensors.

·          System is customized to suit specific requirements.


Conforms to CE, in accordance with IEEE 112TM and

60034-2-1 © IEC:2007
