Features and Benefits:

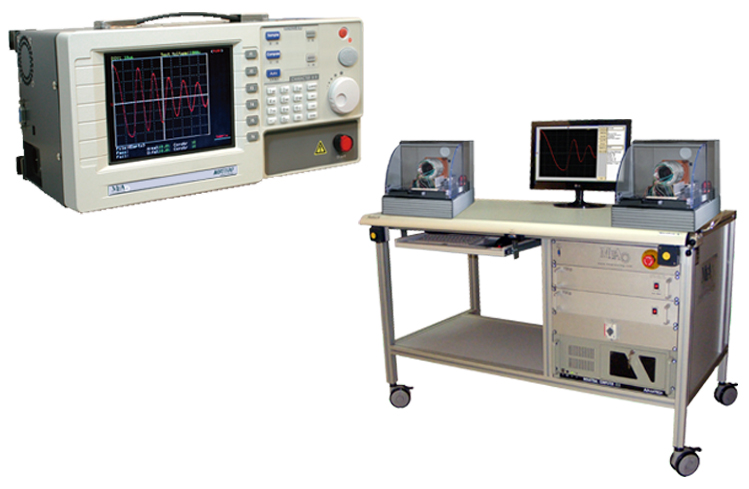

· MEA MSU100 Series – Fully automatic SURGE testing of 3 phase and single phase stators, armatures, transformers, and motors, ranging from 10 W to 500 kW, and patented Stator/Rotor performance testing.
· MEA MSU101 Series – Customized, fully automatic production line testing system with SURGE testing of 3 phase or single phase stators, armatures, transformers, and motors, ranging from 10 W to 500 kW. The system can be also equipped with automatic testing of H.V. and 4-wire resistance, temperature, and patented Stator/Rotor performance testing.
· PERFORMANCE TESTING – MEA patented tests – MEA patented performance testing provides fully automatic Stator/Rotor performance tests, showing the UUT performance as it will be after assembled as motor.
· Integrated database.
· 200 V up to 5 kV programmable impulse.
· Option for Partial/Low-Energy Discharge.
· Go/No Go tests with comparison detection of: Area Size, Diff Zone, Corona Amount, and Corona Number.
· Performances tests comparison at cold and hot state (temperature tests via up to 8 thermocouples).
· Interfaces: RS-232, USB, Ethernet (for remote control).
· Can be controlled via I/O for OEM applications and easy integration for automatic lines.
· Special self-calibration function. No need to send back for the vendor's calibration, saving time and costs.
· MSU101 integrated and operated with PC having user-friendly Windows 7 interface, with large database for storing test programs and test results.
· Barcode reader, individual print-out of test protocols and labels, of H.V. and 4-wire resistance, and temperature measurement can be integrated into the system.
Conforms to CE, in accordance with IEEE 112TM and
60034-2-1 © IEC:2007
